1. Product Introduction
In the pipeline system, elbow is a pipe fitting to change the direction of the pipeline. According to the angle, there are titanium elbow 45 degree and titanium elbow 90 degree , degree 180 . Three most commonly used, in addition, according to the needs of the project, there are also 60 degree and other abnormal angle elbows.Most titanium elbow 45 degree are used for welding. In order to improve the welding quality, the ends are beveled, with a certain angle and a certain edge. This requirement is also strict. There are regulations on the thickness of the edge, the angle and the deviation range. The surface quality and mechanical properties are basically the same as those of tubes. For the convenience of welding, the titanium grade of the pipe fitting and the connected pipe is the same.

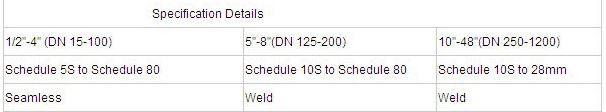

2.The Specification Details
3.Product parameters
Name | titanium elbow 45 degree |
Material | Gr1, Gr2, Gr12 |
Specification | 1/2"-48" Schedule 5s to Schedule 80 |
Standard | ASTM B363, EN 10253, DIN 2605 |
Type | R=1.0D, R=1.5D, R=3D |
Bending degrees | 30, 45, 60, 90, 120, 180 degrees bend |
Surface Processing | quartz-shot, sand-blasting, polishing |
Application | Chemical processing, shipyard, Fire-fighting equipment, Seawater desalination, Grid, equipment accessories, Pressure vessel accessory, Off-shore, on-shore, Petrochemical plant, ion-exchang membrane caustic soda, Recrystalizer and evaporator etc |
4. Checkout equipment
5. Our Factory Show
6. FAQ
1.Q: Could you accept customized service?
A: Sure , we could customize according to your requirement.
2.Q: Would you provide sample service?
A: Of course. Samples available.
