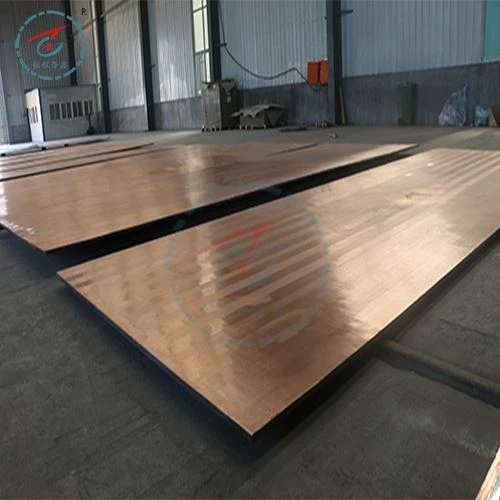

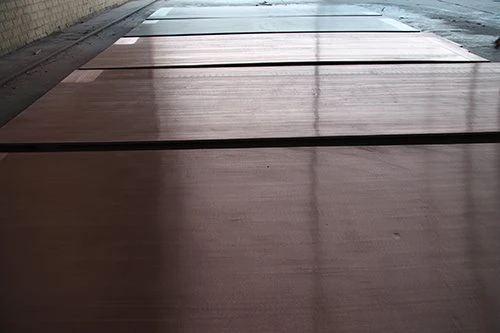

1. Product description
The combined shear strength of the composite interface of copper clad steel plate for industrial shall not be less than 100MPa. For double-sided composite plates, different side cladding materials are reserved for shear tests. Only the tensile test of the base material shall be conducted for the composite plate, and the test results shall comply with the provisions of the base material standard. Only the impact test of the base material shall be conducted for the composite plate, and the impact test temperature and impact energy shall comply with the provisions of the base material standard. If there is no requirement for an impact test in the base material standard, the copper clad steel plate will not be subjected to an impact test.
2. Dimensions
Bonding method: explosion bonding
Size range:
Thickness of cladding metal:2mm~10mm
Thickness of base metal:≥6mm
Width:Customized
Length： customized
3. Application

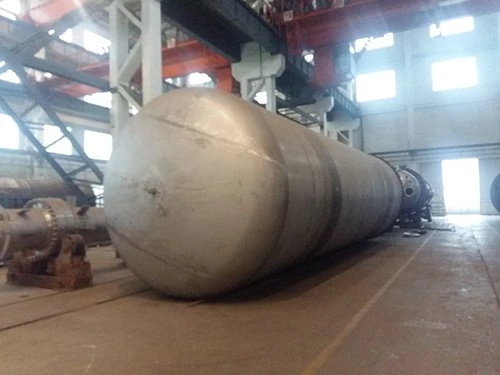

Vacuum salt-making heating chamber and evaporation chamber

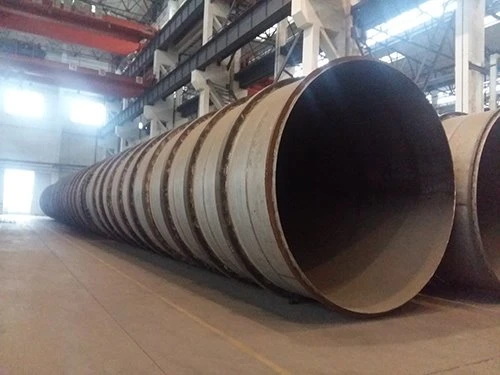

Vacuum salt making heating chamber and evaporation chamber adopt copper steel composite plate, titanium steel composite plate, and stainless steel steel composite plate; The main equipment of vacuum salt making has four heat exchange areas of 700-1000m ² The heating chamber and volume are 200-400m ² The evaporation tanks, i.e. large vessels with a diameter of 4000-6500mm and a height of 10000-15000mm, are made of copper steel composite plates. Bf30-1-1 Q235B copper steel composite plate is used in the domestic 30000-300000 T / a vacuum salt plant.
4. Package
Each copper clad steel plate for Industrial shall be marked with the product mark, batch number, manufacturer's name (or factory logo), production date, etc. on the surface of the cladding material at the end of the steel plate. The surface of the cladding shall be effectively protected to prevent scratches.
5. Transportation
Road transport: FMCSA cargo stationary driver's manual, ADR and en 12195-1:2010
Shipping: IMO (International Maritime Organization) / ILO / UNECE code of practice on the packaging of goods. Transport unit (CTU code) / IMDG.
The typical acceleration of the design package is 2.3g forward, 1.5g backward, 2G upward, and 2.5G downward (an124)
6. Why choose us
Hard work, and good work will always be rewarded. With more than ten years of hard work, relying on the geographical advantages of the development of China's Titanium Valley Industry and the east wind of reform and innovation, Taicheng’s people have worked hard and forged ahead all the way. With the strong support of colleagues from all walks of life, Baoji Taicheng Metal Composite Material Co., Ltd. has developed into a high-tech enterprise in the metal clad industry with an annual output value of more than RMB300 million, “TAICHENG HEXIN” has become a well-known trademark. Taicheng’s products have been exported to more than 70 users at home and abroad, which are highly praised by users and have made due contributions to building an innovative, green, environmental, and energy-saving society.
7. FAQ
What are the methods of producing clad plate?
Pouring method, forging method, powder metallurgy method, powder metallurgy rolling method, welding method (diffusion welding, surfacing), the rolling bonding method, explosive welding, explosive welding plus rolling method, and so on. Based on metal properties, product specifications, service conditions of clad plate, market demand, technological progress, and equipment update, rolling clad method, explosive welding, and explosive welding rolling method are the main production methods at present.
