Copper Aluminum Composite Plate

1. product Introduction:

Due to the large chemical difference and the potential difference between copper and aluminum, it is easy to form non-conductive Al2Q3 or easy to oxidize and corrode when powered on, copper aluminum composite plate is widely used in electric power, electronics, new energy power vehicle batteries; For example, square shell battery pole, soft pack battery pole lug, single battery series or parallel bus bar, battery module connection bar and bus bar; Transformer reactor outgoing/busbar, cable connector; copper composite aluminum plate has the conductivity of copper and the heat dissipation of aluminum. For example, high power LED lamp radiator, LED lamp heat dissipation substrate, thermoelectric separation circuit board, electrolysis plant.

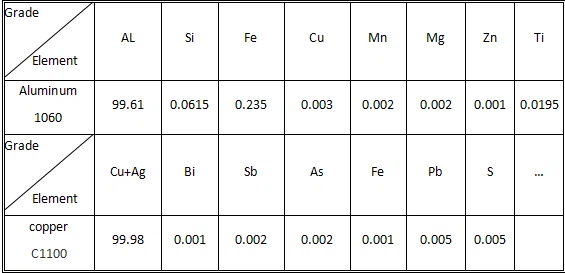

T2(C1100) +1060 copper aluminum-clad plate

Other physical properties

Resistivity: (Ω m ㎡ / M) ≤ 0.024

Elongation: (%) 15 ~ 30

Tensile strength: (MPA) 150-170

Peel strength: (n / mm) ＞ 12

Surface hardness: (HV 0.3) 76 / 37

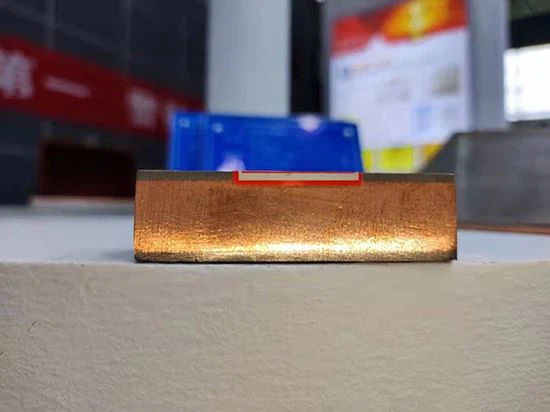

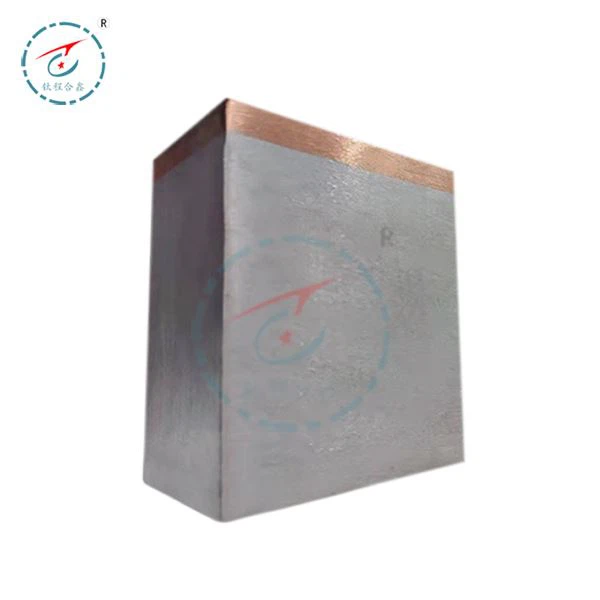

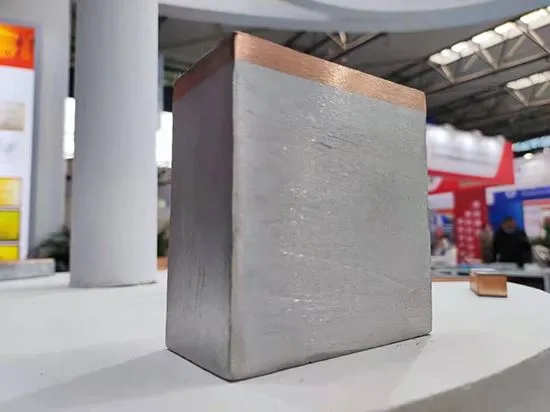

2. Product picture

3. Application

Non-ferrous metallurgy (aluminum electrolysis, carbon production);

High current parts (transformer, electrolytic electrode);

Energy (thermal power, hydropower, nuclear power, garbage power generation, power transmission, and transformation);

National Defense (military river crossing bridge);

Connectors;

Traffic (power connection column in distribution cabinet of the high-speed railway);

Shipbuilding industry (freezing chamber of the freezing ship);

Computer heat dissipation;

4. Company brief introduction

Founded in 2005, our company is one of the explosion-related enterprises specially approved by the Baoji Public Security Bureau. The company has two field explosion compound fields, one with a disposable explosive of less than 1000 kg and one with a disposable explosive of less than 2000 kg. It is one of the few enterprises in Baoji with transportation, storage, and use of dangerous explosives. We are a Chinese manufacturer of copper aluminum composite plates with low prices and high quality.

5. FAQ

1. Sample: free

2. Packing: Suitable for packing by sea, land, and air

3. Payment: T/T or L/C

4. OEM: We support OEM

5. Warranty period: 12 months
