1. Product description

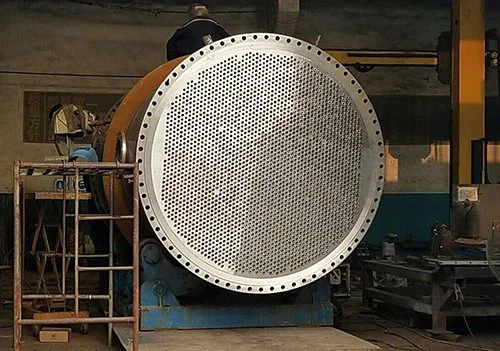

The application in the field of equipment mainly refers to the chemical equipment of similar para phthalic acid manufacturing equipment and the power equipment of condenser tube sheets for power plants. In particular, the shipment volume in the power field has reached more than 1000. This field is the pillar industry of titanium steel clad tube sheet for heat exchanger.
Recent topics: titanium steel clad tube sheet for heat exchanger is also used in bleaching treatment tanks in paper mills and sodium hypochlorite treatment tanks in sewage treatment plants.
2. Dimensions
The thickness of the cladding material is 2mm ~ 10mm. The minimum thickness of the base material is 6mm, and the ratio of the base material thickness to the cladding material thickness is usually not less than 3.
The maximum width of the cladding plate is 2000mm and the maximum length is 6000mm. The maximum diameter of the circular cladding plate is 3000mm. According to the agreement between the supplier and the buyer, composite plates exceeding the above dimensions can be supplied.
3. Product Features
A)Strong corrosion resistance. No matter in industrial areas, heavily polluted urban areas, rural areas, or coastal areas, the natural color surface of titanium will not change color after several years.
(B) Good mechanical properties. The tensile strength of industrial pure titanium is higher than that of ordinary carbon structural steel.
(C) It has good anti-epidemic and anti-creep properties.

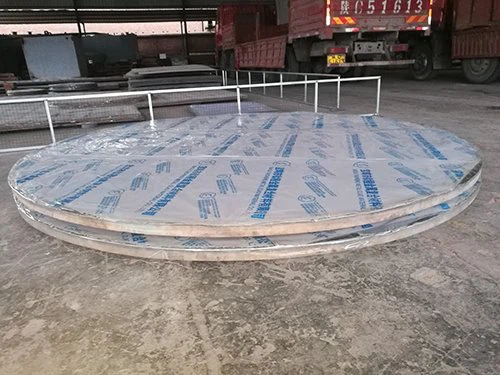

4. Product Package
Each titanium steel clad tube sheet for heat exchanger shall be marked with the product mark, batch number, manufacturer's name (or factory logo), production date, etc. on the surface of the cladding material at the end of the steel plate.
5. Why choose us
1） Our company is a factory, not a trader, so it saves unnecessary price differences for customers.
2）We can communicate directly with customers face to face, greatly reducing communication costs.
3） Our products are exported to many countries and regions in Asia, Europe, and America.
4） We have a perfect quality, environment, and safety assurance systems, and have successively passed ISO9001 quality system certification and EU PED certification. Our products have obtained the design approval certificate of the American classification society, etc.
6. FAQ
Principle of explosive welding?
Metal explosive welding is a metal processing technology that uses explosives as energy to weld two or more metal materials into one. Large-area metal explosive welding is called metal explosive composite. It is different from other metal-clad plate production methods. In a very short time, it is in the order of microseconds, the workpiece is applied with a high-voltage pulse load (about 1000000 ATM), the loading stress is far higher than the dynamic yield strength of the metal material; the loading process is instantaneous, within a few microseconds; the workpiece only bears the load locally, and it is in a state of high-speed movement, and the deformation only occurs in the action zone The bonding zone is a wavy metallurgical bonding form.
