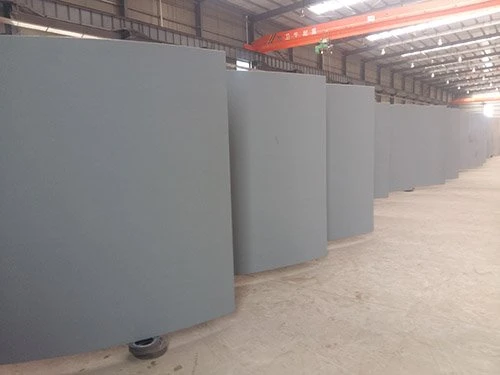

1. Product Description
Nickel based alloy clad steel plate is a clad material composed of titanium plate and nickel plate by explosive welding, nickel based alloy clad steel sheet combines the anti-corrosion performance of titanium plate and the anti-corrosion performance of nickel plate. Pure titanium has a high specific strength, excellent corrosion resistance, and other qualities. Ti clad Ni layered composite has high strength, excellent corrosion resistance, and good physical properties. Pure nickel has high conductivity and thermal conductivity, good mechanical properties, and corrosion resistance. It is employed in the production of pressure vessels, chemical equipment, paper making machinery, electrolysis machinery, and other machinery, as well as ships. Due to the high price of nickel and titanium, in order to reduce the cost of equipment, the thickness of nickel based alloy clad steel plate is often reduced. The thickness of this kind of titanium clad nickel plate is only 2-3mm.
2. Dimensions
The thickness of Cladding metal is 2mm ~ 16mm.
The minimum thickness of base metal is 6mm, and the ratio of base material thickness to cladding thickness is usually not less than 3.
3. Product Features
Allowable deviation of thickness
Allowable deviation of cladding thickness | Allowable deviation of substrate thickness | Allowable deviation of the total thickness |
± 10% of the nominal thickness of composite material and not more than ± 1.0mm | The negative value of the standard deviation of the base material shall be reduced by 0.5mm respectively | Allowable deviation of cladding material + allowable deviation of base course |

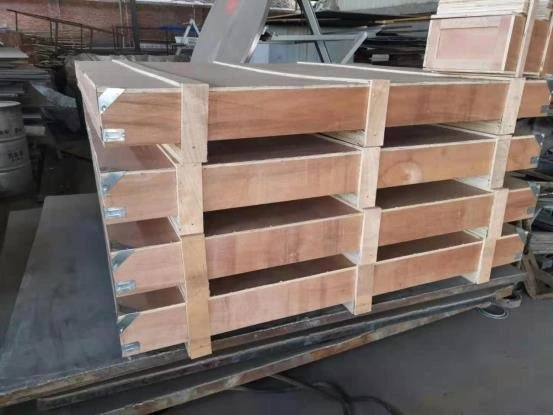

4. Package
We use plywood cases for light and small quantity products, in the plywood boxes, we will use waterproof kraft paper and plastic paper.
5. Transportation
Road transport: FMCSA cargo stationary driver's manual, ADR and en 12195-1:2010
Shipping: IMO (International Maritime Organization) / ILO / UNECE code of practice on the packaging of goods. Transport unit (CTU code) / IMDG.
The typical acceleration of the design package is 2.3g forward, 1.5g backward, 2G upward, and 2.5G downward (an124)
6. Why choose us
1) Since our business is a factory rather than a retailer, clients are spared from paying excessive price differences.
2) We can speak face-to-face with customers, which significantly lowers communication costs.
3) Numerous nations and areas in Asia, Europe, and America get our exports.
4) We have a flawless quality, environmental, and safety assurance system, and we have successfully attained both EU PED and ISO 9001 quality system accreditation. Our goods have received the American Classification Society's design approval certificate, among other things.
7. FAQ
Principle of explosive welding?
Metal explosive welding is a metal processing technology that uses explosives as energy to weld two or more metal materials into one. Large-area metal explosive welding is called metal explosive composite. It is different from other metal-clad plate production methods. In a very short time, it is in the order of microseconds, the workpiece is applied with a high-voltage pulse load (about 1000000 ATM), the loading stress is far higher than the dynamic yield strength of the metal material; the loading process is instantaneous, within a few microseconds; the workpiece only bears the load locally, and it is in a state of high-speed movement, and the deformation only occurs in the action zone The bonding zone is a wavy metallurgical bonding form.
