1. Product Description
Nickel clad steel composite plate is a combination of magnetic and non-magnetic materials, which has excellent contrast between hot and cold neutrons. It is suitable for polarized neutrons in X-ray field and neutron optics. Therefore, Nickel clad steel composite sheet is an ideal material for preparing optical components such as super mirrors, polarizers and monochromator. At the same time, under certain heat treatment conditions, the TiNi phase formed by Titanium clad Nickel interface diffusion has a shape memory effect, which can be used to prepare functional composites with shape memory effect.
2. Dimensions
The thickness of Cladding metal is 2mm ~ 16mm.
The minimum thickness of base metal is 6mm, and the ratio of base material thickness to cladding thickness is usually not less than 3.
3. Product Features
The nickel clad steel composite plate
The specific gravity is 8.7-8.84 × 102kg / m3, Melting point 1445 ℃, boiling point 3080 ℃, high strength, δ B = 400-500 MPa, good plasticity, δ > 50%, suitable for cold and hot working, high chemical stability and strong cold work hardening effect, cold deformation rate up to 60%, δ B = 1000 After cold deformation and annealing at 780-850 ℃, fine grain structure can be obtained. After alloying, high resistance, thermal strength, thermal stability and special electrical, magnetic, and expansion properties can be obtained.
4. Package

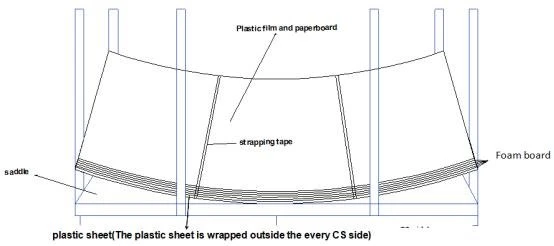

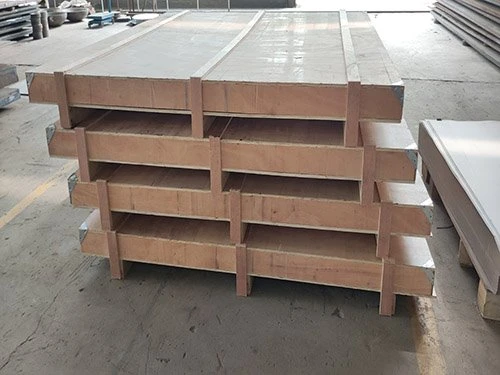

Outer packing: Steel Bracket, Tarpaulin, strapping belt, Rubber, foam, angle steel, etc.

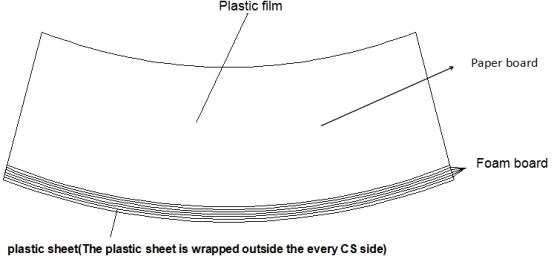

Inner packing: one by one with cardboard + plastic film + plastic tape etc.
5. Transportation
Road transport: FMCSA cargo stationary driver's manual, ADR and en 12195-1:2010
Shipping: IMO (International Maritime Organization) / ILO / UNECE code of practice on the packaging of goods. Transport unit (CTU code) / IMDG.
The typical acceleration of the design package is 2.3g forward, 1.5g backward, 2G upward, and 2.5G downward (an124)
6. Our advantage
Hard work and good work will always be rewarded. With more than ten years of hard work, relying on the geographical advantages of the development of China's Titanium Valley Industry and the east wind of reform and innovation, Taicheng’s people have worked hard and forged ahead all the way. With the strong support of colleagues from all walks of life, Baoji Taicheng Metal Composite Material Co., Ltd. has developed into a high-tech enterprise in the metal clad industry with an annual output value of more than RMB300 million, “TAICHENG HEXIN” has become a well-known trademark. Taicheng’s products have been exported to more than 70 users at home and abroad, which are highly praised by users and have made due contributions to building an innovative, green, environmental, and energy-saving society.
7. FAQ
Principle of explosive welding plus rolling?
Based on the advantages of the above two production methods, the thick composite slab is made by explosive welding, and then the required thickness, width, and length of the composite slab are made by hot rolling or cold rolling according to different conditions or requirements. This is not only a production method, but also technological progress, and also promotes the improvement of equipment manufacturing, which greatly improves the quality, reliability, and service life of the equipment.
