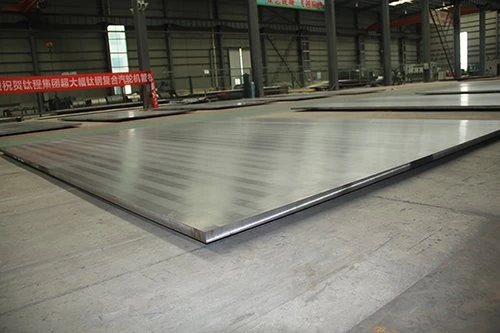

1. Product Description
We are titanium composite plate manufacturers.
Titanium is widely used as a material for various chemical reaction vessels and heat exchangers due to its excellent corrosion resistance, but its disadvantage is its high cost. Especially when used as structural components, this problem is particularly prominent. As one of the titanium clad plate manufacturers, we suggest using a titanium clad plate. The cladding material of titanium and ordinary steel is called titanium steel cladding material. It has both the corrosion resistance of titanium and the strength of ordinary steel plate as a structure. The important thing is that the cost is also greatly reduced.
2. Product Specifications
The thickness of the cladding material is 2mm ~ 10mm. The minimum thickness of the base material is 6mm, and the ratio of the base material thickness to the cladding material thickness is usually not less than 3.
The maximum width of the cladding plate is 2000mm and the maximum length is 6000mm. The maximum diameter of the circular cladding plate is 3000mm. According to the agreement between the supplier and the buyer, composite plates exceeding the above dimensions can be supplied.
3. Product Features
Titanium/steel clad plate
Titanium Grade: GR1、GR2、GR7、GR12 etc.
Steel Grade: ASTM A36,ASME SA516 Gr60, Gr65,Gr70 ,ASME SA537 Gr1 Gr2 Gr3
Size:1~12/3~100 ×< 2000 × 6000
Petrochemical industry, vacuum salt making, Chlor alkali, food, chemical fertilizer, container, bicycle, metallurgy, etc
Titanium / stainless steel
Titanium Grade: GR1、GR2、GR7、GR12 etc.
all kinds of stainless steel
1~12/2~100 ×< 2000 × 6000
Petrochemical industry, Chlor alkali, aerospace, aerospace, low temperature, food, light industry, and medicine, etc
Titanium / Aluminum
Titanium Grade: GR1、GR2、GR7、GR12 etc.
Aluminum grade: 1050 1060 1070 LF21 L2 etc.
1~8/2~50 ×< 1500 ×4000
The aviation industry, cooking utensils industry, chemical industry, ships, special solder, etc
Titanium / copper
Titanium Grade: GR1、GR2、GR7、GR12 etc.
Copper grade:C70600, C71500 , C71520
C10200, C10400 C10500, C1100, C28000,C23000, C46400 etc.
1~10/2~50 ×< 2000 × 4000
Power industry, electrolysis industry, cooking utensils, etc.
Titanium / nickel
Titanium Grade: GR1、GR2、GR7、GR12 etc.
Nickel grade:ASME SB162 UNS N02200, N02201
ASME SB168 N06600 ASME SB409 N08800 UNSN08810 etc.
1~10/2~50 ×< 2000 × 4000
Metallurgical industry, etc
4. Applications
Maintenance of marine structures
Japan is surrounded by the sea, and the base of economic activities is located in the offshore area. With the needs of economic development, the space of circulation, transportation, urban functions, and other facilities is using the sea area and is developing from the shallow sea area of the inland sea and inner bay in the past to the open sea and deep sea area now. To this end, Japan has set up a super large floating technology research group to conduct theoretical research and field tests on super large floating marine structures with a scale of several kilometers and durability of 100 years. Titanium material has the advantages of excellent corrosion performance, few dissolved ions in seawater environment, non-toxic, and no need to worry about polluting the environment. Therefore, it has become the preferred material for marine structures.

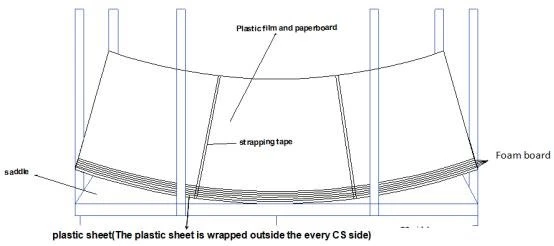

5. Package
Package material:
Outer packing: steel bracket, tarpaulin, strapping belt, rubber, foam, angle steel, etc.
Inner packing: one by one with cardboard + plastic film + plastic tape etc.
6. Transportation
Road transport: FMCSA cargo stationary driver's manual, ADR and en 12195-1:2010
Shipping: IMO (International Maritime Organization) / ILO / UNECE code of practice on the packaging of goods. Transport unit (CTU code) / IMDG.
The typical acceleration of the design package is 2.3g forward, 1.5g backward, 2G upward, and 2.5G downward (an124)
7. Why choose us
We are titanium composite plate manufacturers.
“Hard work, good work will always be rewarded” is our tenet. With more than ten years of hard work, relying on the geographical advantages of the development of China's Titanium Valley Industry and the east wind of reform and innovation, Taicheng’s people have worked hard and forged ahead all the way. With the strong support of colleagues from all walks of life, Baoji Taicheng Metal Composite Material Co., Ltd. has developed into a high-tech enterprise in the metal clad industry with an annual output value of more than RMB300 million, “TAICHENG HEXIN” has become a well-known trademark. Taicheng’s products have been exported to more than 70 users at home and abroad, which are highly praised by users and have made due contributions to building an innovative, green, environmental, and energy-saving society.
8. FAQ

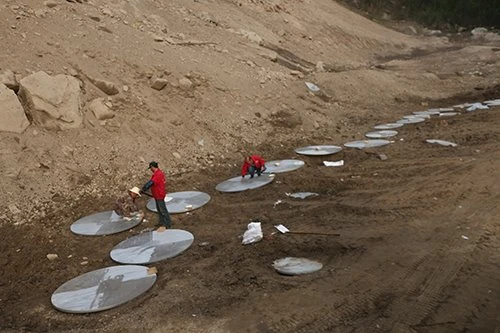

Principle of explosive welding plus rolling?
Based on the advantages of the above two production methods, the thick composite slab is made by explosive welding, and then the required thickness, width, and length of the composite slab are made by hot rolling or cold rolling according to different conditions or requirements. This is not only a production method, but also technological progress, and also promotes the improvement of equipment manufacturing, which greatly improves the quality, reliability, and service life of the equipment.
