1.product Introduction
Zirconium clad steel plate is a clad material composed of zirconium plate and carbon steel plate by explosive welding explosive, zirconium plate has excellent corrosion resistance in most organic acids, inorganic acids, strong acids and some molten salts. So zirconium clad steel plate can combines the advantages of steel plate and zirconium plate, and also saves material cost for customers.
2. Product parameters
Steel Plate Grade | Zirconium Plate Grade | Size | Specifications |
ASME SA516 Gr60, Gr65,Gr70 ASME SA537 Gr1 Gr2 Gr3 ASME SA105 ASME SA350 LF1 LF2 LF3 ASME SA182 F1,11,12,21,22 ASME SA266 Gr1, Gr2, Gr3, Gr4 | ASTM R60702 ASTM R60700 | TK: Base plate:7-300mm clading plate:1-10mm L<3500-6500mm | Upon ISO,ASTM,ASME,JIS, GB/T, NB/T, JB/T |
3.Product qualification
Certificate:
UN PED Certification
4.Making of zirconium steel clad plate
The specific gravity is 6.51, and when making zirconium steel clad plate, need a Titanium layer between zirconium and carbon steel, because zirconium and carbon steel are two different metal which can not be welded together directly, using titanium as a medium can unit these two materials together. First we have to do explosion for Titanium and carbon steel, after this we will do heat treatment and flating, then do the second time explosion.
5.Heat treatment of zirconium steel clad plate
In general, 600-700 ℃ is used to keep the temperature for 0.5-3.0 hours. When the furnace is cooled, the nickel above 700 ℃ will become brittle, causing cold brittleness.
6.Package

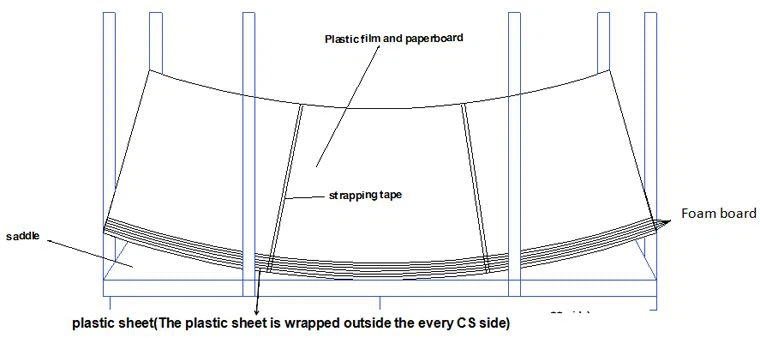

We use plywood case and steel saddle
Package material:
Outer packing: Steel Bracket, Tarpaulin, strapping belt, Rubber, foam , angle steel etc.
Inner packing: one by one with cardboard + plastic film + plastic tape etc.
7. Transportation
Road transport: FMCSA cargo stationary driver's manual, ADR and en 12195-1:2010
Shipping: IMO (International Maritime Organization) / ILO / UNECE code of practice on packaging of goods. Transport unit (CTU code) / IMDG.
The typical acceleration of the design package is 2.3g forward, 1.5g backward, 2G upward and 2.5G downward (an124)
